CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin

CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin

  • CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
  • CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
Product Details:
Place of Origin: CHINA
Brand Name: ZT
Model Number: CG125
Contact Now
All Products
Motorcycle Engine Parts (75)
Motorcycle Electrical Components (18)
Motorcycle Modification Parts (2)
Motorcycle Brake System (30)
Motorcycle Body Parts (63)
Other Motorcycle Accessories (203)
Motorcycle Light (14)
Motorcycle Carburetor (6)
Motorcycle Shock Absorber (4)
Motorcycle Chains And Sprockets (12)
Motorcycle Clutch (13)
Motorcycle Piston (8)
Motorcycle Exhaust Pipe (3)
Motorcycle Cylinder (6)
Motorcycle Lock (8)
Detailed Product Description
Product Name: CG125 Plug Set Piston: Material: High-silicon Aluminium Alloy; Surface: Graphite Coating; Number Of Ring Grooves: 3; Total Height: Approximately 55mm; Pin Hole Centre To Top: Approximately 16mm
Piston Ring: Compression Ring: 2 Pieces, Thickness 0.8mm, Made Of Alloy Cast Iron; Oil Ring: 1 Piece, Thickness 2.0mm, Composite / Steel Type Packaging Method: Colour Box/metal Box/white Box
Minimum Order Quantity: 500 Sets Warranty Period: One Year
Customised Service: If You Want To Know More, Leave Your Contact Information
Highlight:

CG125 Motorbike Piston

,

15mm Piston Pin

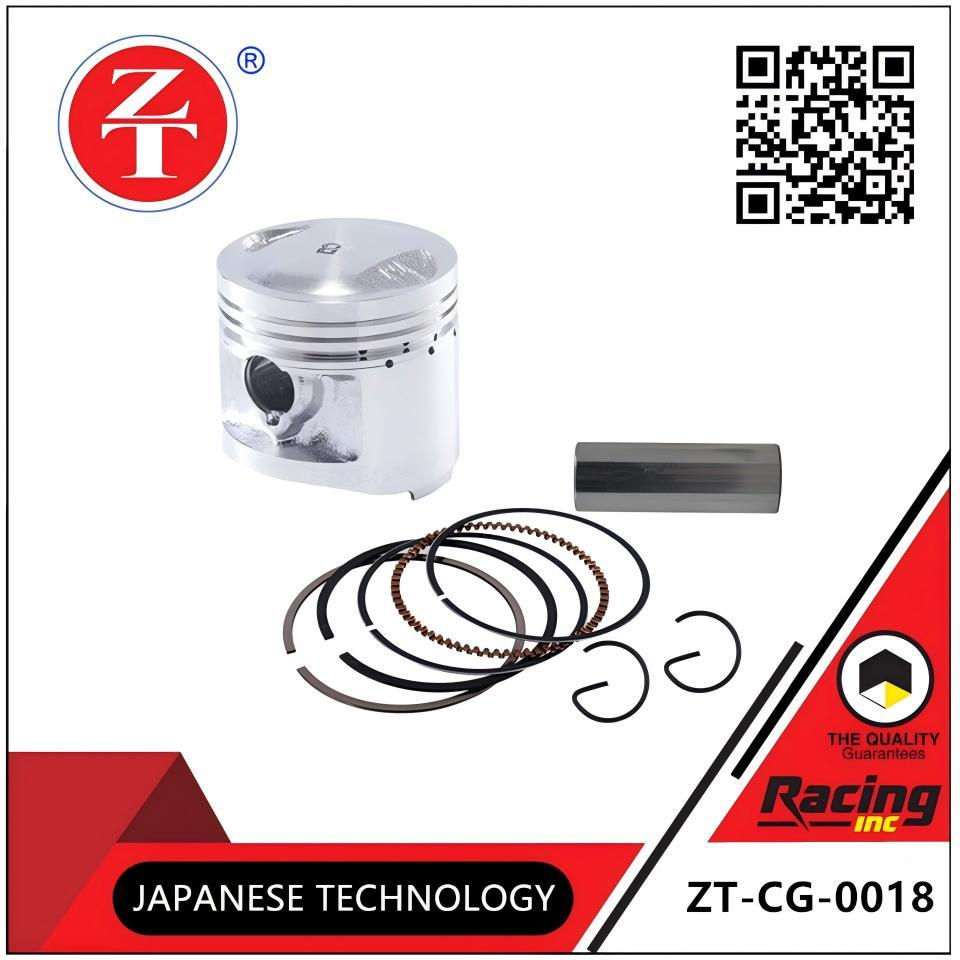

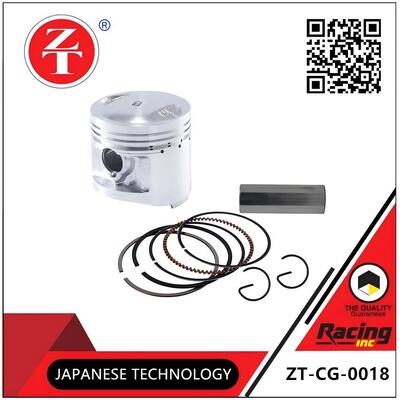

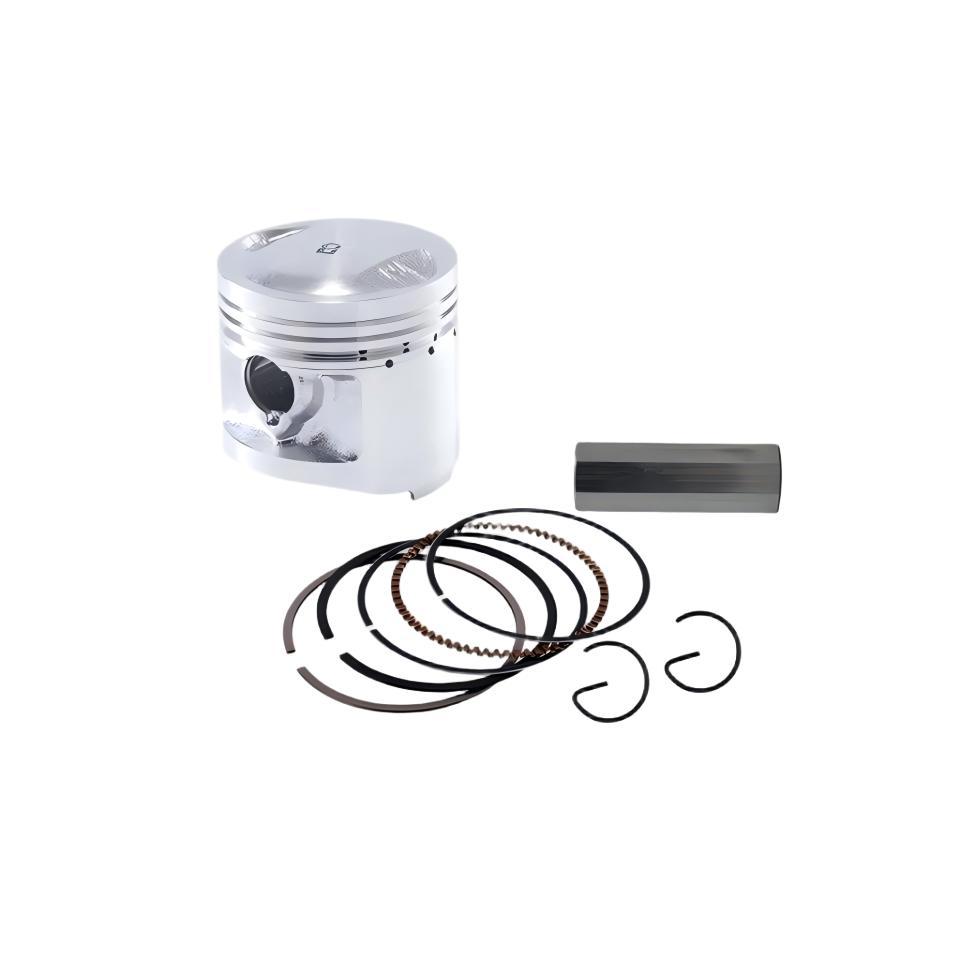

The CG125 piston set (piston assembly) does not include the cylinder liner and contains the piston, piston rings, piston pin, circlip, and top dead centre gasket. The piston is made of high-silicon aluminium alloy with a graphite coating for reduced friction and wear resistance; the piston rings are a 2-gas 1-oil combination, providing good sealing and oil scraping; the piston pin is carburised and quenched for high strength. It is compatible with Honda CG125, Xingfu XF125, and other 125cc single-cylinder overhead valve engines, easy to install, and comes with reliable after-sales support.The CG125 piston set (piston assembly) does not include the cylinder liner and contains the piston, piston rings, piston pin, circlip, and top dead centre gasket. The piston is made of high-silicon aluminium alloy with a graphite coating for reduced friction and wear resistance; the piston rings are a 2-gas 1-oil combination, providing good sealing and oil scraping; the piston pin is carburised and quenched for high strength. It is compatible with Honda CG125, Xingfu XF125, and other 125cc single-cylinder overhead valve engines, easy to install, and comes with reliable after-sales support.CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin 0



Tag:

motorbike piston,

motorcycle piston ring,

motorcycle piston set

Contact Details
Guangzhou ZT Parts Co., Ltd.

Contact Person: Tan

Tel: 13516658764

Send your inquiry directly to us (0 / 3000)

Other Products
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance

Product Name: CG125 piston

Piston diameter: 56.5mm (standard), increased by 0.25mm/0.50mm

Piston pin specifications: 15mm×47.3mm

Piston overall height: Approximately 49mm
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design

Product Name: CG125 piston rings

Compatible cylinder diameter: 56.5mm (standard), increased by 0.25mm/0.50mm

O-ring specification: Thickness is about 1.2mm (first layer) and 1.5mm (second layer)

Oil ring specification: Modular, total thickness approximately 3mm
CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine

Name of product: CG125 motorcycle piston ring set

Suitable for CG125 engine with corresponding displacement: Small displacement version/regular displacement version/regular displacement version/enlarged displacement version/large displacement version

Ring groove size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5/1.2×1.2×2.5

Diameter of cylinder: 56.5MM/62MM/62MM/63.5MM/67MM
High Strength Steel CG125 Motorcycle Piston Set With Piston Ring Piston Pin
High Strength Steel CG125 Motorcycle Piston Set With Piston Ring Piston Pin

Name of product: CG125 motorcycle piston set

Adapt to CG125 version: Small displacement version/regular displacement version/regular displacement version/increased displacement version

Ring groove size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5

Diameter of pin: 13MM/15MM/13MM/15MM
Wear Resistant YBR125 Motorcycle Piston Assembly With Pin Clamp Spring
Wear Resistant YBR125 Motorcycle Piston Assembly With Pin Clamp Spring

Name of product: YBR125 motorcycle piston assembly

Fit cylinder diameter: 54MM (YBR125 special middle cylinder)

The component consists of: Piston + piston pin + piston clip spring

Material quality: Forged wear-resistant aluminum alloy (piston) + high carbon steel (piston pin)
