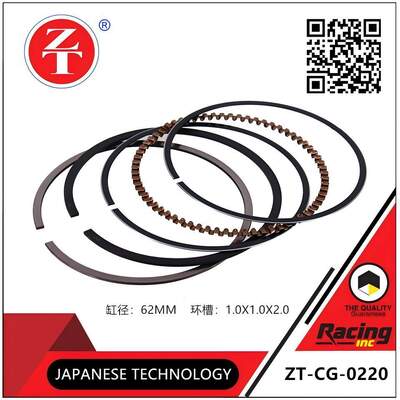

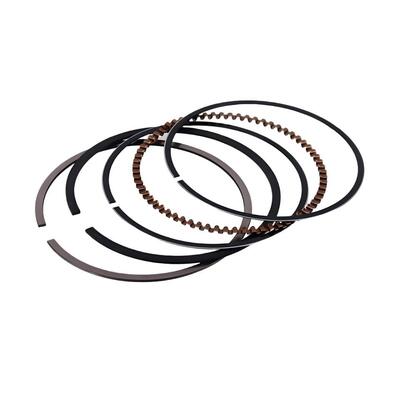

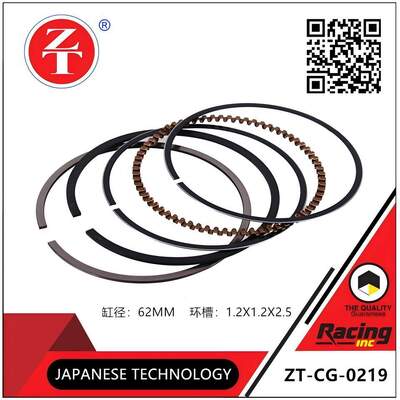

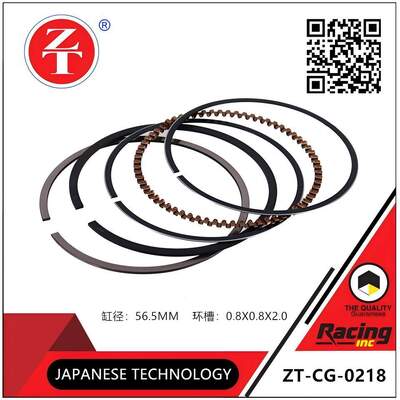

CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine

CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine

  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
  • CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine
Product Details:
Place of Origin: CHINA
Brand Name: ZT
Model Number: CG125
Contact Now
All Products
Motorcycle Engine Parts (75)
Motorcycle Electrical Components (18)
Motorcycle Modification Parts (2)
Motorcycle Brake System (30)
Motorcycle Body Parts (63)
Other Motorcycle Accessories (203)
Motorcycle Light (14)
Motorcycle Carburetor (6)
Motorcycle Shock Absorber (4)
Motorcycle Chains And Sprockets (12)
Motorcycle Clutch (13)
Motorcycle Piston (8)
Motorcycle Exhaust Pipe (3)
Motorcycle Cylinder (6)
Motorcycle Lock (8)
Detailed Product Description
Name Of Product: CG125 Motorcycle Piston Ring Set Suitable For CG125 Engine With Corresponding Displacement: Small Displacement Version/regular Displacement Version/regular Displacement Version/enlarged Displacement Version/large Displacement Version
Ring Groove Size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5/1.2×1.2×2.5 Diameter Of Cylinder: 56.5MM/62MM/62MM/63.5MM/67MM
Highlight:

CG125 Motorcycle Piston Ring Set

,

Rod Jacking Engine Motorcycle Piston

CG125 motorcycle piston ring set, providing 56.5MM, 62MM, 63.5MM, 67MM cylinder diameter, with corresponding ring socket size (such as 0.8×0.8×2.0, 1.2×1.2×2.5, etc.), completely match the piston/cylinder of CG125 engine with different displacement, directly replace the original piston ring; Including air ring (sealing combustion chamber), oil ring (scraping cylinder wall oil), layered design to ensure the combustion chamber air tightness and cylinder lubrication rationality, improve engine power and fuel efficiency; Using alloy cast iron + chrome plating/molybdenum spraying process, resistance to high temperature, wear resistance, suitable for high load engine working environment, service life is longer than ordinary piston ring; It is one of the core components of engine overhaul, which can be directly assembled on the corresponding piston, suitable for professional engine maintenance operations.CG125 Motorcycle Piston Ring Set With Multiple Cylinder Diameter For Rod Jacking Engine 0



Tag:

motorbike piston,

motorcycle piston ring,

motorcycle piston set

Contact Details
Guangzhou ZT Parts Co., Ltd.

Contact Person: Tan

Tel: 13516658764

Send your inquiry directly to us (0 / 3000)

Other Products
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance
56.5mm CG125 Motorcycle Piston Sealed Cylinder Corrosion Resistance

Product Name: CG125 piston

Piston diameter: 56.5mm (standard), increased by 0.25mm/0.50mm

Piston pin specifications: 15mm×47.3mm

Piston overall height: Approximately 49mm
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design
High Strength CG125 Motorcycle Piston Rings Wear Resistant Design

Product Name: CG125 piston rings

Compatible cylinder diameter: 56.5mm (standard), increased by 0.25mm/0.50mm

O-ring specification: Thickness is about 1.2mm (first layer) and 1.5mm (second layer)

Oil ring specification: Modular, total thickness approximately 3mm
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin
CG125 Motorbike Piston Assembly Plug 56.5mm Bore 15mm Piston Pin

Product Name: CG125 plug set

Piston: Material: high-silicon aluminium alloy; Surface: graphite coating; Number of ring grooves: 3; Total height: approximately 55mm; Pin hole centre to top: approximately 16mm

piston ring: Compression ring: 2 pieces, thickness 0.8mm, made of alloy cast iron; oil ring: 1 piece, thickness 2.0mm, composite / steel type

Packaging method: Colour box/metal box/white box
High Strength Steel CG125 Motorcycle Piston Set With Piston Ring Piston Pin
High Strength Steel CG125 Motorcycle Piston Set With Piston Ring Piston Pin

Name of product: CG125 motorcycle piston set

Adapt to CG125 version: Small displacement version/regular displacement version/regular displacement version/increased displacement version

Ring groove size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5

Diameter of pin: 13MM/15MM/13MM/15MM
Wear Resistant YBR125 Motorcycle Piston Assembly With Pin Clamp Spring
Wear Resistant YBR125 Motorcycle Piston Assembly With Pin Clamp Spring

Name of product: YBR125 motorcycle piston assembly

Fit cylinder diameter: 54MM (YBR125 special middle cylinder)

The component consists of: Piston + piston pin + piston clip spring

Material quality: Forged wear-resistant aluminum alloy (piston) + high carbon steel (piston pin)
