YBR125 Motorcycle Clutch Wood Chip 91/119MM Abrasion Resistance

Product Name: CG125 motorcycle magneto rotor

Main material: 20# Chromium Manganese Titanium Steel (integrally forged)

Magnetic steel configuration: 8 pieces of neodymium iron boron magnets (magnetic flux ≥120mT)

Core dimensions: Outer diameter approximately 110.4mm, height 49.5mm, tapered hole diameter 22mm (taper 1:5), 6 fixing holes (evenly distributed)

Product Name: CG125 clutch small assembly

Main material: Body: ADC12 aluminium alloy; Friction pad: carbon fibre wood

Core specifications: The mainstream model has 4 pillars and 5 spokes, with options for large or small holes, and widened versions

Key dimensions: Outer diameter approximately φ110mm, gear part outer diameter φ119mm, bearing hole φ28mm

Product Name: Clutch large gear

Main material: No. 45 carbon steel (integrally forged, tooth surface quenched)

Core specifications: 8 grooves 73 teeth, compatible with CG125 series standard clutch system

Key dimensions: Outer diameter approximately 150mm, tooth outer diameter φ119mm, spline hole diameter 28mm, thickness approximately 30mm

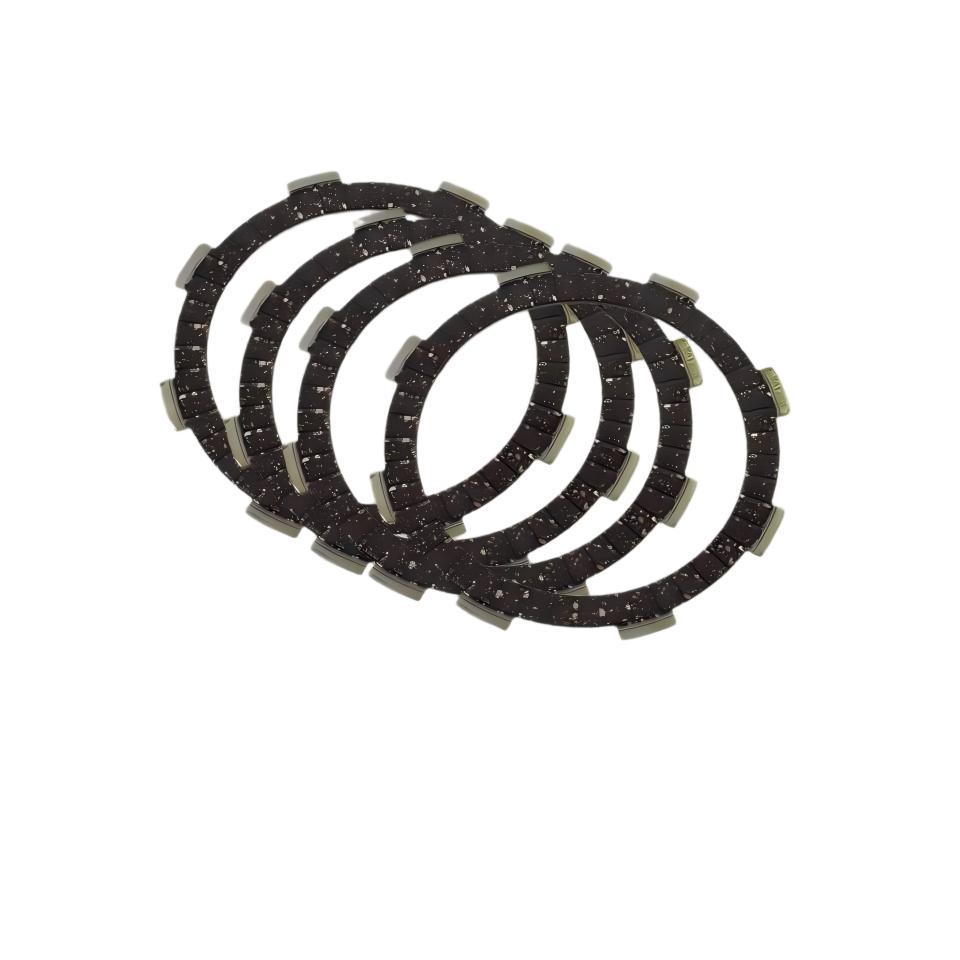

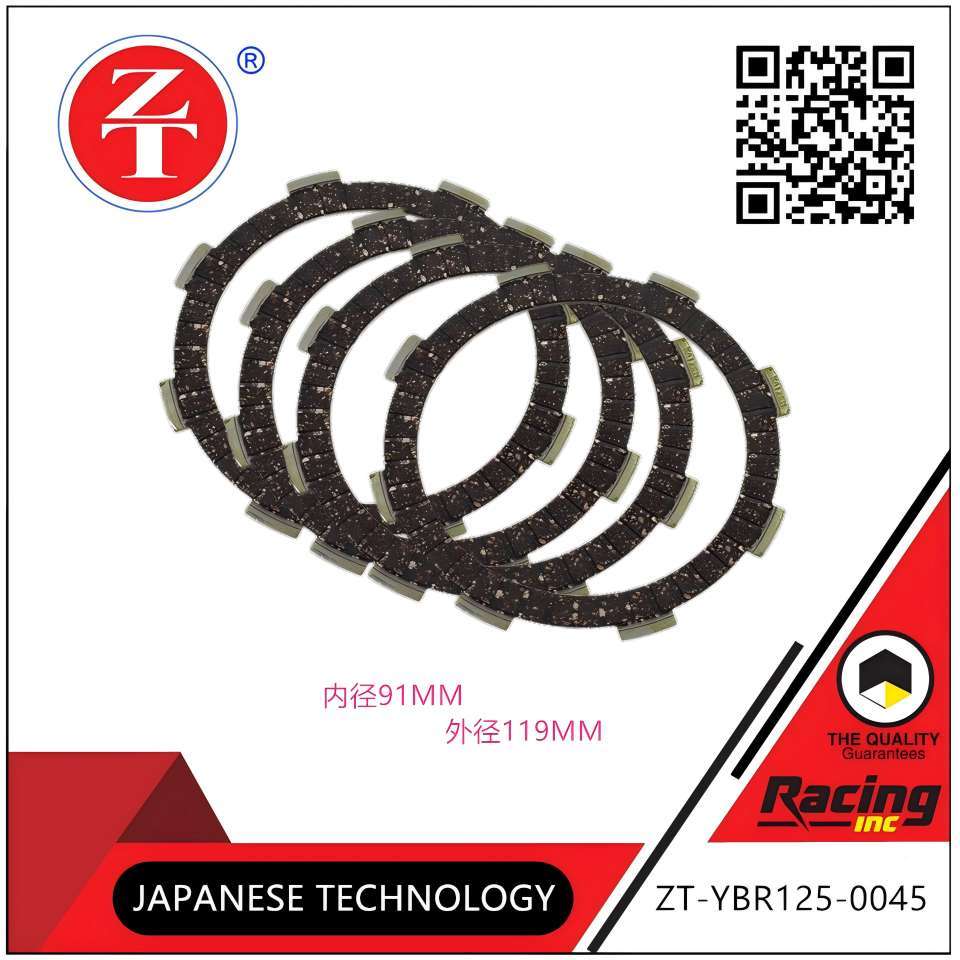

Product Name: CG125 clutch friction linings

Material: Carbon fibre composite friction material (asbestos-free)

Specifications and dimensions: Inner diameter 91mm / Outer diameter 119mm / Thickness 3.15mm

Set quantity: 5 pieces/set (CG125 standard configuration)

Product Name: CG125 clutch friction plates 4-piece steel set

Material: Low-carbon cold-rolled steel (black passivation treatment)

Specifications and dimensions: Inner diameter 91mm / Outer diameter 119mm / Thickness 1.5mm

Set quantity: 4 pieces/set (CG125 standard configuration)
