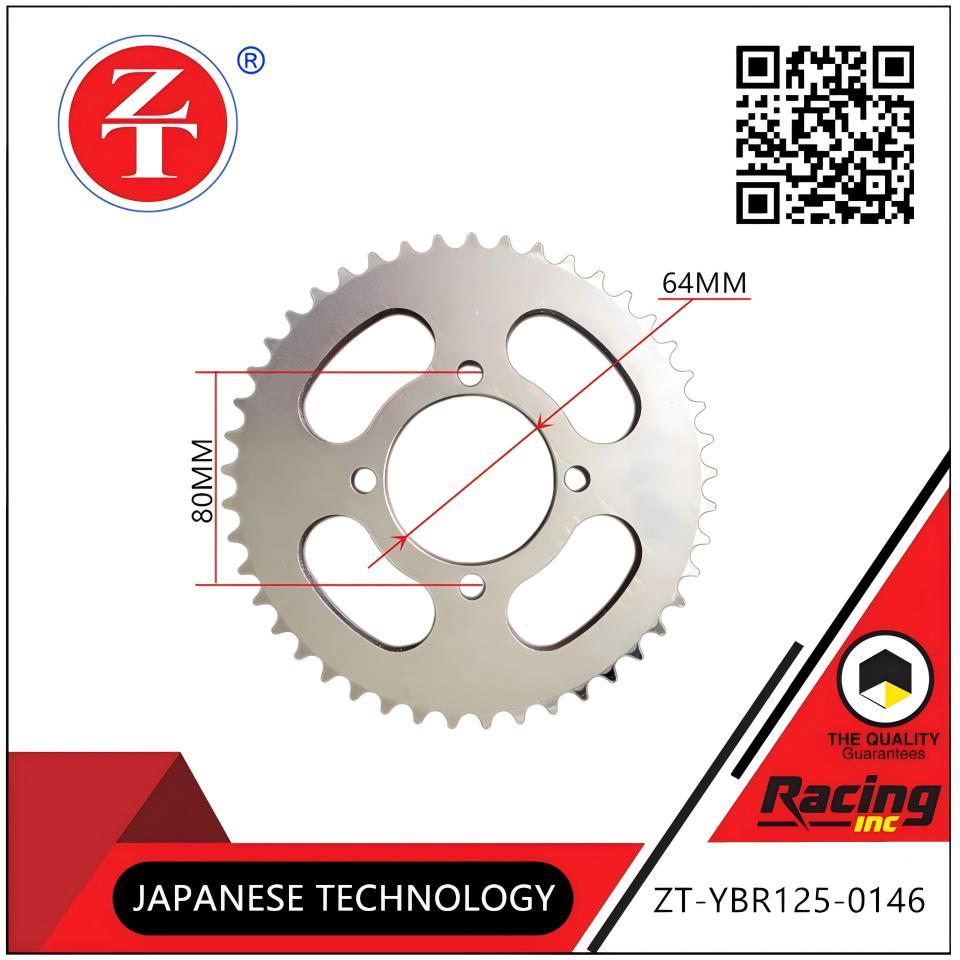

YBR125 Motorcycle Chains And Sprockets With Center Hole 64MM

Name of product: YBR125 time gauge chain

Specifications: 25H-88L

Material quality: Wear-resistant alloy + anti-rust coating

Function of function: The driving force of the crankshaft and camshaft and the control of the timing of the air distribution are the core transmission parts of the air distribution system

Product Name: CG125 Sprocket Cushion Sleeve

Material: Natural rubber Nitrile rubber composite

Shore hardness: 65-70°

Core specifications: Hole inner diameter: 8MM Length: 20MM Outer diameter: 24MM

Name of product: CG125 motorcycle small tooth 428-15T

Main body material: Manganese steel (carburized and quenched)

Sprocket specification: Model 428, 15 teeth (15T)

Function of function: Cooperate with transmission chain and large tooth to transfer transmission power to rear wheel

Name of product: CG125 motorcycle big teeth

Main body material: Thickened low carbon steel plate (quenched + galvanized for rust prevention)

Sprocket specification: Model 428, 37 teeth (37T)

Dimensions: Outer diameter 106MM, inner hole 58MM

Name of product: CG125 motorcycle size gear set 428H-38T big teeth + 15T small teeth

Posterior large tooth: 428H-38T, outer diameter 106MM/inner hole 58MM

Small anterior teeth: 428H-15T, mounting hole M6

Material quality: Large teeth (steel plate hardening)/small teeth (manganese steel carburizing)
