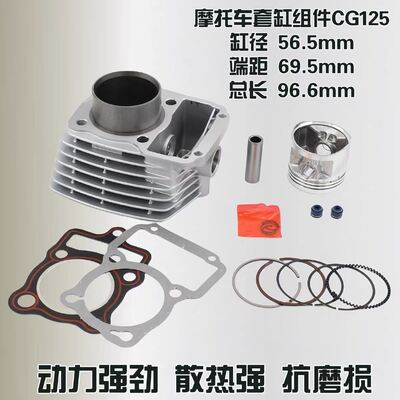

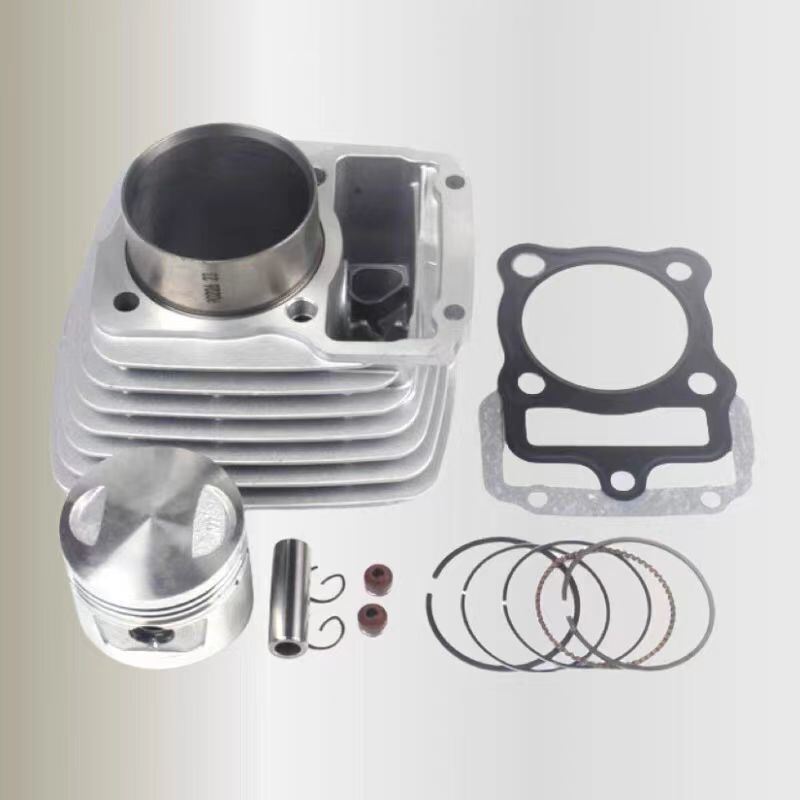

CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
Product Details

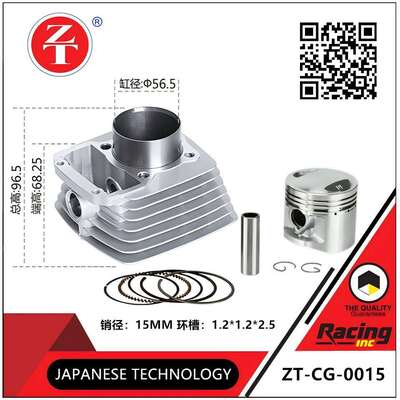

| Product Name: | CG125 Cylinder Set | Bore / Stroke: | Cylinder Bore 56.5mm, Stroke Approximately 49.5mm |
|---|---|---|---|
| Cylinder Block Dimensions: | Total Height Is Approximately 96.5mm, Installation Surface Height Is Approximately 68.25mm | Piston Pin: | Diameter 15mm, Length 48–50mm |
| Piston Ring Groove: | The Width Of The Air Ring Groove Is About 1.25mm, And The Width Of The Oil Ring Groove Is About 2.1mm | Compression Ratio: | Original Factory Approximately 9.0:1–9.5:1 |
| Packaging Type: | Iron Box Coloured Bag/coloured Box Coloured Bag/kraft Paper Box Bag | Warranty Period: | Two Years |
| Customised Service: | Logo Printing/customised Packaging (leave Contact Details For More Information) | ||
| Highlight |
high strength motorbike body parts,Motorcycle Body accessories high performance |
||
Product Description
The CG125 cylinder set is the core assembly of a single-cylinder, four-stroke, air-cooled engine, used in 125cc commuter motorcycles. It consists of a cylinder body, piston, piston rings, piston pin, circlip, and upper and lower gaskets, responsible for completing the four-stroke cycle of intake, compression, power, and exhaust, serving as a key component for power output and efficiency. The three-ring piston design ensures cylinder sealing, reduces compression leakage and oil blow-by, and improves combustion efficiency. With proper maintenance, its lifespan can reach 20,000–30,000 kilometres, making it suitable for urban commuting and medium to short-distance riding.
Product Highlights
The CG125 cylinder set is the core assembly of a single-cylinder, four-stroke, air-cooled engine, used in 125cc commuter motorcycles. It consists of a cylinder body, piston, piston rings, piston pin, circlip, and upper and lower gaskets, responsible for completing the four-stroke cycle of intake, ...
