High Strength CG125 Motorcycle Piston Rings Wear Resistant Design

Product Name: CG125 piston

Piston diameter: 56.5mm (standard), increased by 0.25mm/0.50mm

Piston pin specifications: 15mm×47.3mm

Piston overall height: Approximately 49mm

Product Name: CG125 plug set

Piston: Material: high-silicon aluminium alloy; Surface: graphite coating; Number of ring grooves: 3; Total height: approximately 55mm; Pin hole centre to top: approximately 16mm

piston ring: Compression ring: 2 pieces, thickness 0.8mm, made of alloy cast iron; oil ring: 1 piece, thickness 2.0mm, composite / steel type

Packaging method: Colour box/metal box/white box

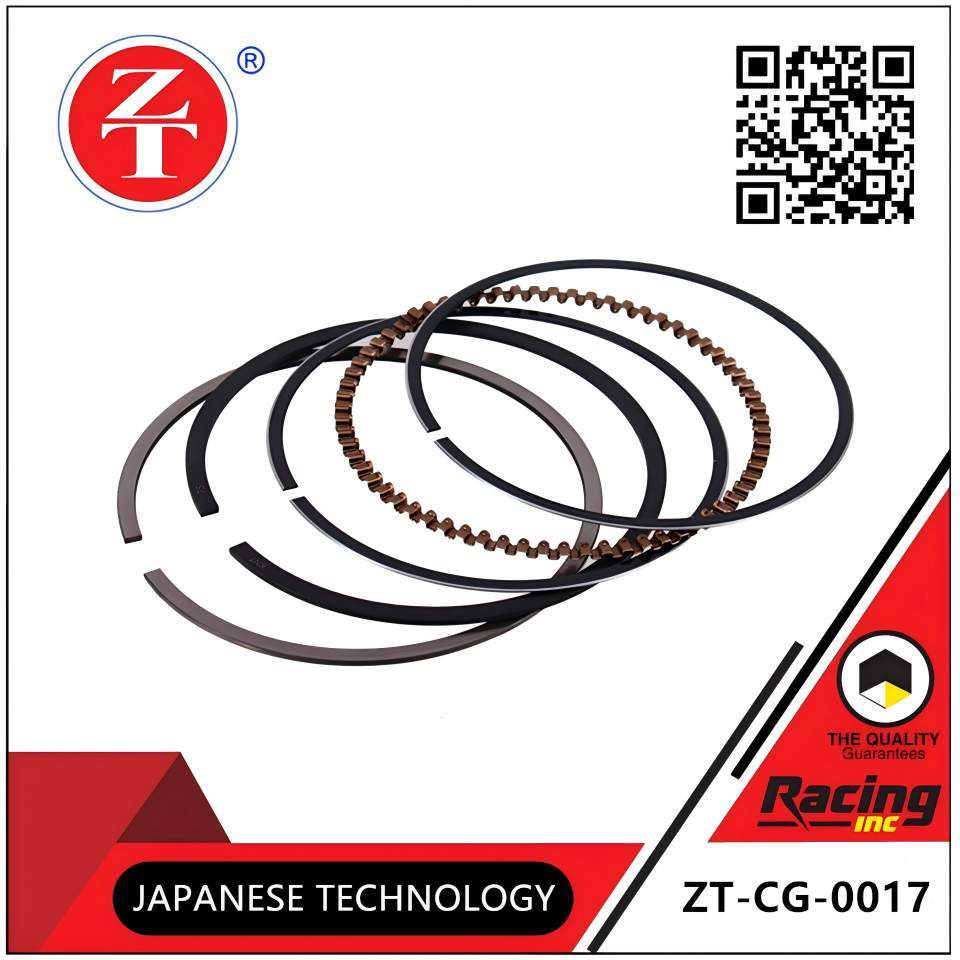

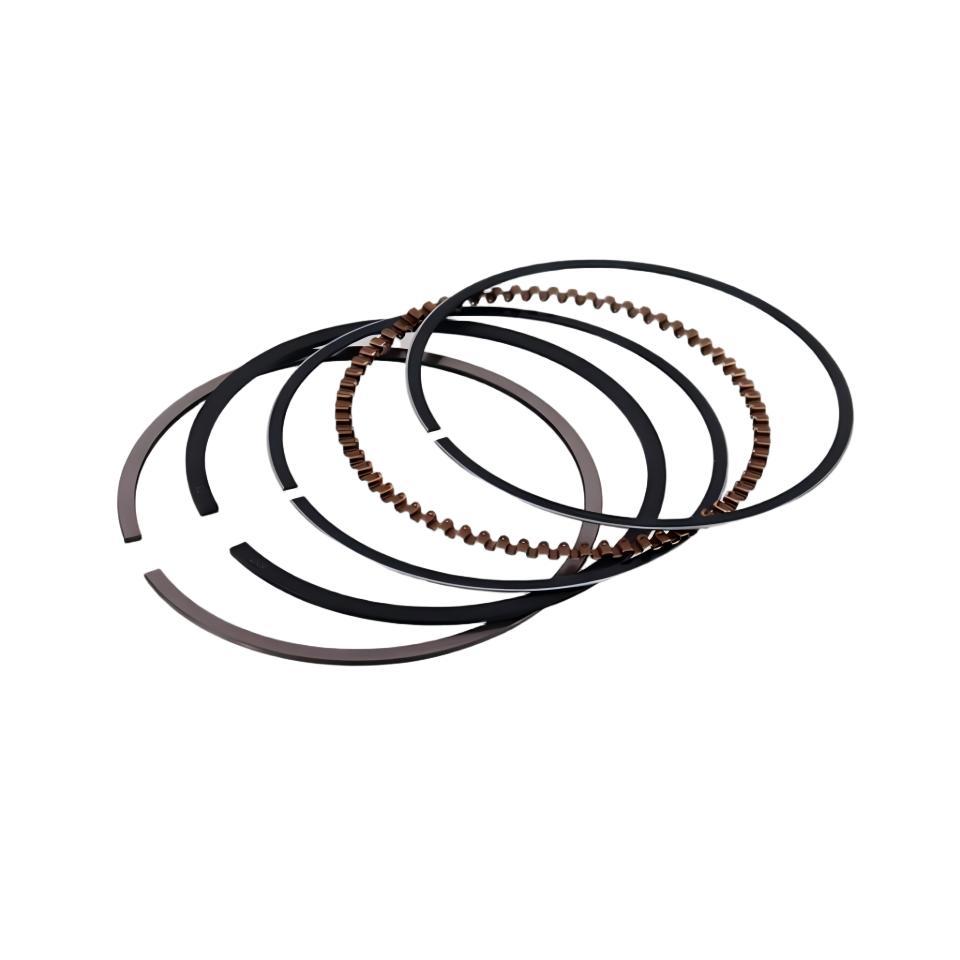

Name of product: CG125 motorcycle piston ring set

Suitable for CG125 engine with corresponding displacement: Small displacement version/regular displacement version/regular displacement version/enlarged displacement version/large displacement version

Ring groove size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5/1.2×1.2×2.5

Diameter of cylinder: 56.5MM/62MM/62MM/63.5MM/67MM

Name of product: CG125 motorcycle piston set

Adapt to CG125 version: Small displacement version/regular displacement version/regular displacement version/increased displacement version

Ring groove size: 0.8×0.8×2.0/1.2×1.2×2.5/1.0×1.0×2.0/1.0×1.0×2.5

Diameter of pin: 13MM/15MM/13MM/15MM

Name of product: YBR125 motorcycle piston assembly

Fit cylinder diameter: 54MM (YBR125 special middle cylinder)

The component consists of: Piston + piston pin + piston clip spring

Material quality: Forged wear-resistant aluminum alloy (piston) + high carbon steel (piston pin)
