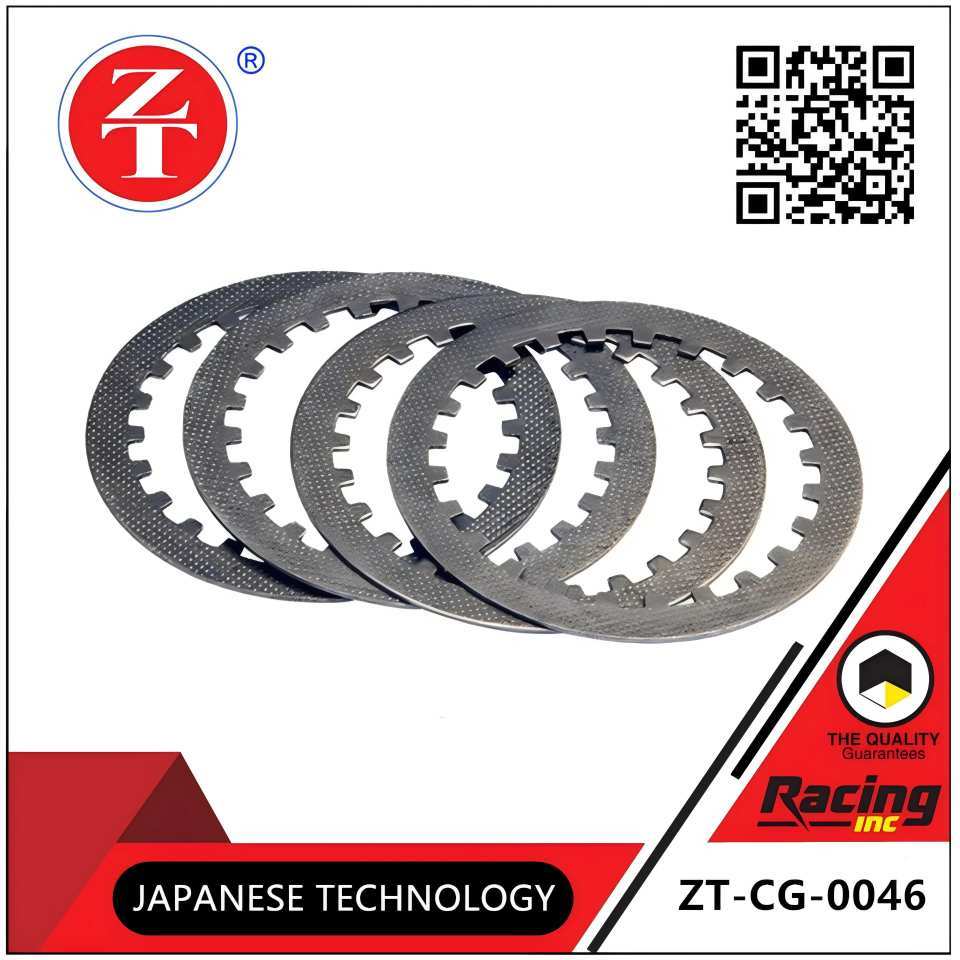

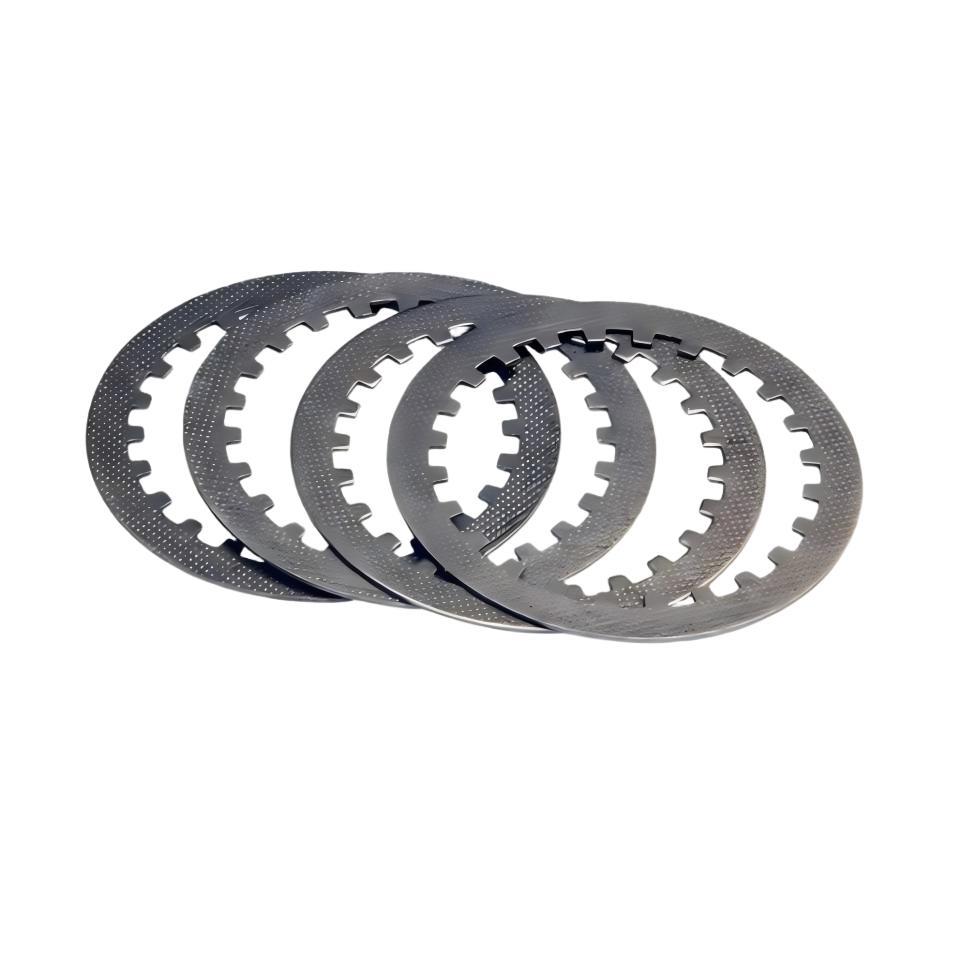

CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented

CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented

  • CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
  • CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
Product Details:
Place of Origin: CHINA
Brand Name: ZT
Model Number: CG125
Contact Now
All Products
Motorcycle Engine Parts (75)
Motorcycle Electrical Components (18)
Motorcycle Modification Parts (2)
Motorcycle Brake System (30)
Motorcycle Body Parts (63)
Other Motorcycle Accessories (203)
Motorcycle Light (14)
Motorcycle Carburetor (6)
Motorcycle Shock Absorber (4)
Motorcycle Chains And Sprockets (12)
Motorcycle Clutch (13)
Motorcycle Piston (8)
Motorcycle Exhaust Pipe (3)
Motorcycle Cylinder (6)
Motorcycle Lock (8)
Detailed Product Description
Product Name: CG125 Clutch Friction Plates 4-piece Steel Set Material: Low-carbon Cold-rolled Steel (black Passivation Treatment)
Specifications And Dimensions: Inner Diameter 91mm / Outer Diameter 119mm / Thickness 1.5mm Set Quantity: 4 Pieces/set (CG125 Standard Configuration)
Surface Treatment: Anti-slip Textured Stamping Anti-rust Treatment Flatness Error: ≤0.02mm
Adaptive Structure: Internal Spline (fits Small Clutch) Packaging Type: Coloured Bags Coloured Boxes/white Bags
Warranty Period: One Year Customised Service: Colour Bags/colour Boxes (leave Your Contact Information For More Details)
Highlight:

CG125 Clutch Friction Plates

,

Surface treatmented clutch friction disc

CG125 clutch friction plates 4-piece steel plate set, moulded according to CG125 wet clutch standards, inner diameter 91mm / outer diameter 119mm / thickness 1.5mm, inner spline perfectly meshes with the clutch hub, directly replacing old plates without modification; made from high-quality low-carbon cold-rolled steel, surface treated for rust resistance, hardness reaches HV200-250, deformation-resistant, wear-resistant, able to withstand frequent clutch pressure impact; surface pressed with anti-slip texture, closely fits clutch wooden plates, delivering power without play, solving gear shifting jerks and power slippage caused by old steel plates deforming and blackening; surface undergoes blackening and passivation double treatment, salt spray resistance ≥48 hours, suitable for high-temperature, oily engine environments, long-term use without rusting; combined with CG125 clutch wooden plates (5-piece set) to form the standard "4 steel plates 5 wooden plates" set, ready for direct assembly without separately matching specifications; steel plate flatness error ≤0.02mm, minimal wear on clutch large teeth and hub during operation, indirectly extending the life of the entire clutch systemCG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented 0



Tag:

motorbike clutch,

Motorcycle Clutch Assembly,

Clutch Friction Plates

Contact Details
Guangzhou ZT Parts Co., Ltd.

Contact Person: Tan

Tel: 13516658764

Send your inquiry directly to us (0 / 3000)

Other Products
CG125 Motorcycle Generator Rotor 12V Neodymium Iron Boron Magnet Flywheel
CG125 Motorcycle Generator Rotor 12V Neodymium Iron Boron Magnet Flywheel

Product Name: CG125 motorcycle magneto rotor

Main material: 20# Chromium Manganese Titanium Steel (integrally forged)

Magnetic steel configuration: 8 pieces of neodymium iron boron magnets (magnetic flux ≥120mT)

Core dimensions: Outer diameter approximately 110.4mm, height 49.5mm, tapered hole diameter 22mm (taper 1:5), 6 fixing holes (evenly distributed)
CG125 Motorcycle Clutch Assembly 4 Rods 5 Pieces Reinforced Clutch Core
CG125 Motorcycle Clutch Assembly 4 Rods 5 Pieces Reinforced Clutch Core

Product Name: CG125 clutch small assembly

Main material: Body: ADC12 aluminium alloy; Friction pad: carbon fibre wood

Core specifications: The mainstream model has 4 pillars and 5 spokes, with options for large or small holes, and widened versions

Key dimensions: Outer diameter approximately φ110mm, gear part outer diameter φ119mm, bearing hole φ28mm
CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate

Product Name: Clutch large gear

Main material: No. 45 carbon steel (integrally forged, tooth surface quenched)

Core specifications: 8 grooves 73 teeth, compatible with CG125 series standard clutch system

Key dimensions: Outer diameter approximately 150mm, tooth outer diameter φ119mm, spline hole diameter 28mm, thickness approximately 30mm
CG125 Clutch Friction Plate Wood Pieces Set Of 5 Carbon Fibre Wear Resistant Clutch Plates
CG125 Clutch Friction Plate Wood Pieces Set Of 5 Carbon Fibre Wear Resistant Clutch Plates

Product Name: CG125 clutch friction linings

Material: Carbon fibre composite friction material (asbestos-free)

Specifications and dimensions: Inner diameter 91mm / Outer diameter 119mm / Thickness 3.15mm

Set quantity: 5 pieces/set (CG125 standard configuration)
CG125 Motor Cycle Clutch Combination Of Wood Chips And Steel Chips
CG125 Motor Cycle Clutch Combination Of Wood Chips And Steel Chips

Name of product: CG125 motorcycle clutch wood chips

Adapt to CG125 version: Regular/heavy load/heavy load

The core material: Formica + steel sheet/copper matrix composite material/high strength steel
