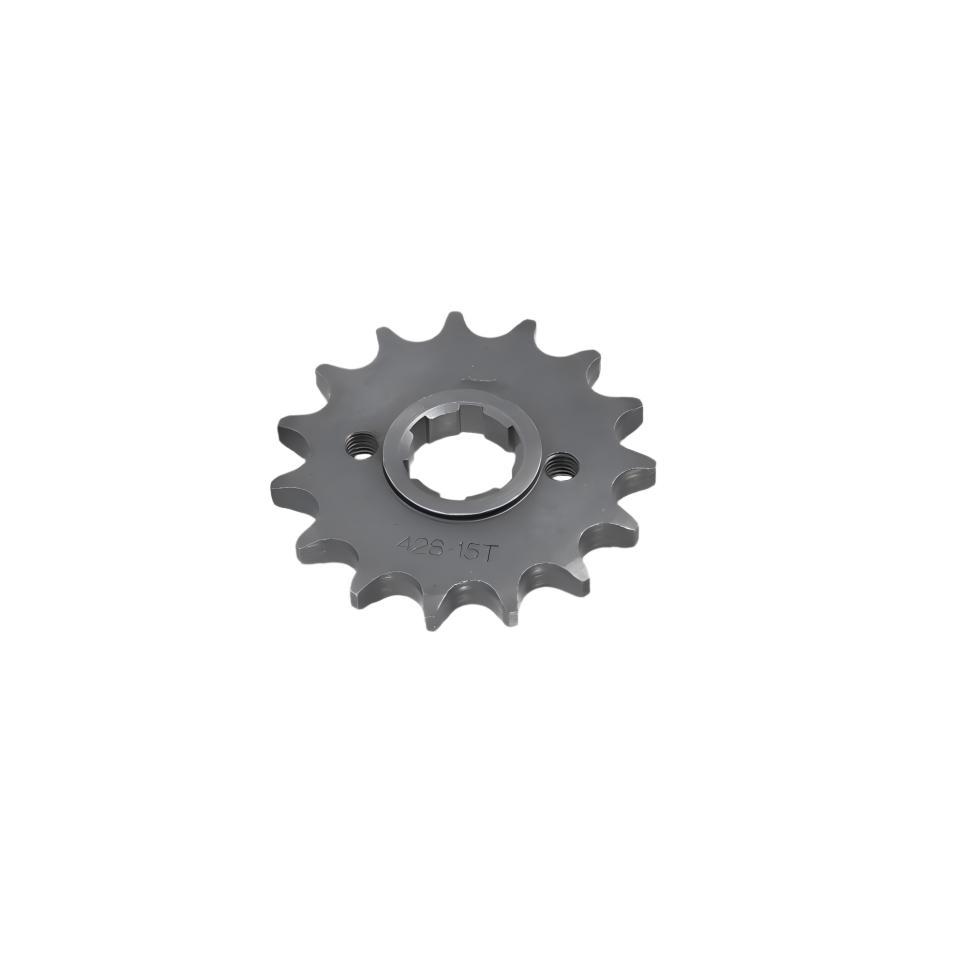

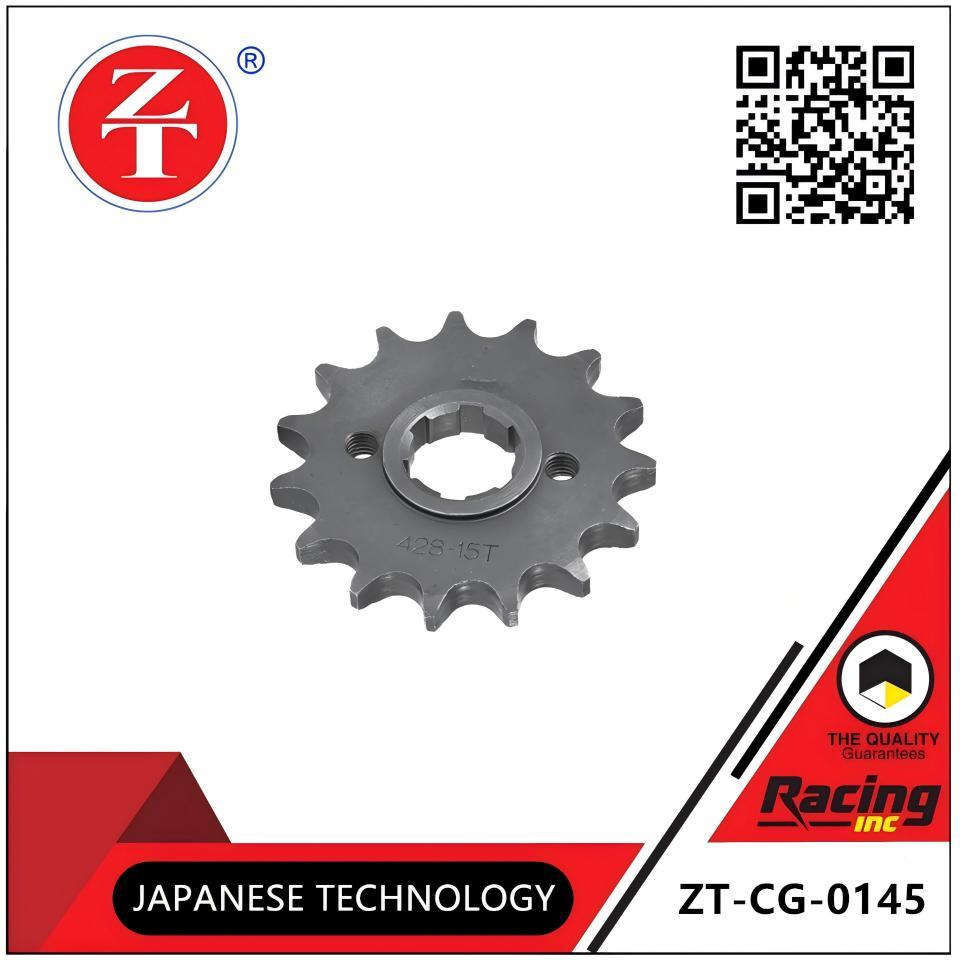

CG125 Small Tooth 428-15T Front Chain Wheel Manganese Steel Body

Name of product: YBR125 time gauge chain

Specifications: 25H-88L

Material quality: Wear-resistant alloy + anti-rust coating

Function of function: The driving force of the crankshaft and camshaft and the control of the timing of the air distribution are the core transmission parts of the air distribution system

Product Name: CG125 Sprocket Cushion Sleeve

Material: Natural rubber Nitrile rubber composite

Shore hardness: 65-70°

Core specifications: Hole inner diameter: 8MM Length: 20MM Outer diameter: 24MM

Name of product: CG125 motorcycle big teeth

Main body material: Thickened low carbon steel plate (quenched + galvanized for rust prevention)

Sprocket specification: Model 428, 37 teeth (37T)

Dimensions: Outer diameter 106MM, inner hole 58MM

Name of product: CG125 motorcycle size gear set 428H-38T big teeth + 15T small teeth

Posterior large tooth: 428H-38T, outer diameter 106MM/inner hole 58MM

Small anterior teeth: 428H-15T, mounting hole M6

Material quality: Large teeth (steel plate hardening)/small teeth (manganese steel carburizing)

Name of product: CG125 motorcycle transmission chain

Type of chain: 428H-102L (Reinforced roller chain)

Number of sections: Section 102

Material quality: Chain/pin shaft (carburized hardened steel), roller (wear-resistant alloy)
