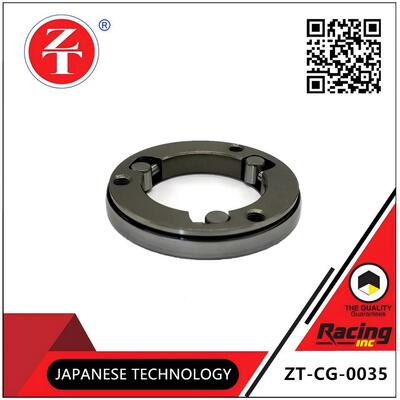

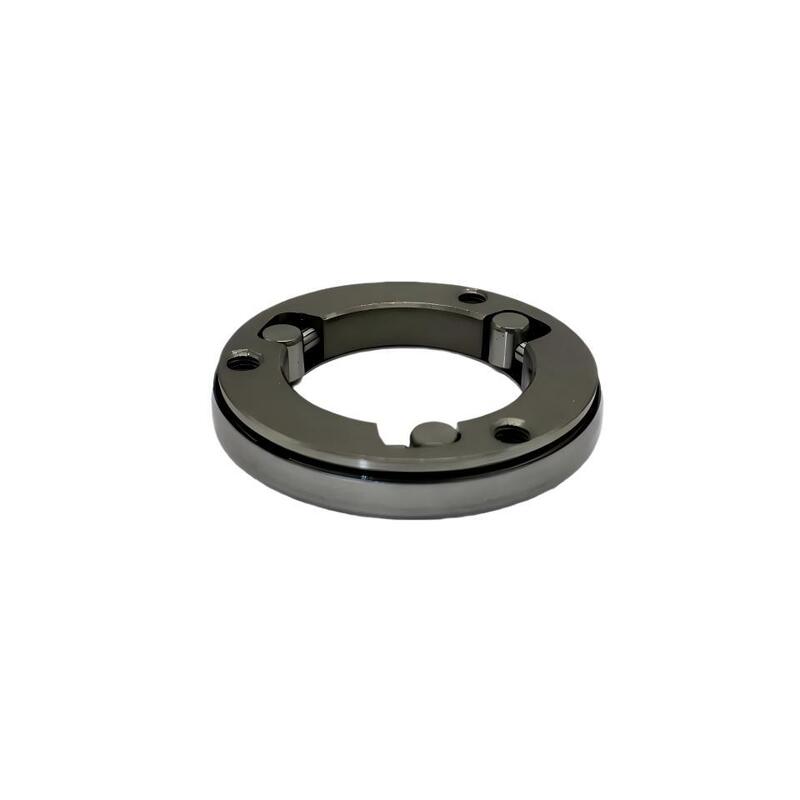

CG125 motorcycle override clutch single plate starter plate body one-way transmission plate
Product Details
| Product Name: | CG125 Motorcycle Surpasses Single-plate Clutch | Material: | No. 45 Carbon Steel (quenched) |
|---|---|---|---|
| Core Dimensions: | Outer Diameter Approximately 110mm, Internal Gear Specifications 6Φ18Φ20 (suitable For CG125 Crankshaft), Thickness Approximately 15mm | Structure Type: | 3 Beaded Clutch One-Way Drive Disc |
| Surface Treatment: | High-temperature Blackening Anti-rust Oil Coating | Packaging Type: | Colourful Bags Colourful Boxes/white Bags Kraft Boxes |
| Warranty Period: | One Year | Customised Service: | Colour Boxes/colour Bags/logo Printing |
| Highlight |
high strength motorbike body parts,Motorcycle Body accessories high performance |
||
Product Description
The CG125 clutch disc exceeds the original specifications, strictly replicating the CG125 factory standards. The internal teeth, positioning holes, and crank/starting gear match 100%, allowing direct replacement of old parts without modification. Made from 45# carbon steel with precision machining, its surface is quenched and blackened for rust prevention, reaching a hardness of HRC40-45, making it wear-resistant and impact-resistant with a lifespan twice that of ordinary materials. It features a built-in 3-ball pawl structure, ensuring precise engagement depth (tooth gap ≤0.1mm), delivering seamless power transfer during starting, and automatically disengaging after engine operation to prevent damage to the starting mechanism. CNC machining guarantees internal bore and tooth profile tolerances ≤0.02mm, with a smooth, burr-free surface, allowing smooth rotation without stiffness after installation, and noise ≤45dB. Dual protection with black coating and rust-prevention oil, salt spray test ≥48 hours, resisting rust and corrosion even when exposed to humid or oily environments for extended periods.
Product Highlights
The CG125 clutch disc exceeds the original specifications, strictly replicating the CG125 factory standards. The internal teeth, positioning holes, and crank/starting gear match 100%, allowing direct replacement of old parts without modification. Made from 45# carbon steel with precision machining, ...
