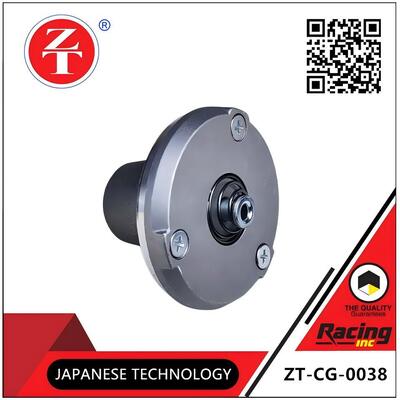

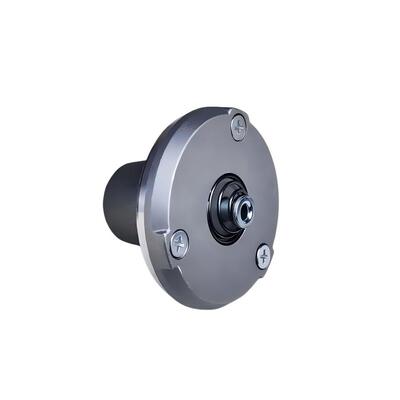

CG125 Motorcycle Oil Pump 125cc Single-Cylinder Pushrod Gear Type Oil Pump Assembly
Product Details
| Product Name: | CG125 Motorcycle Oil Pump | Main Material: | Pump Body: ADC12 Aluminium Alloy; Gear: No. 45 Carbon Steel (hardened) |
|---|---|---|---|
| Core Structure: | Internal Gear Type, Including Drive Gear, Driven Gear, Pump Body, Sealing Components | Fuel Supply Parameters: | Working Pressure: 0.15-0.3MPa; Rated Flow: ≥3L/min (at Engine Speed 5000r/min) |
| Compatible Engine Oil: | 10W-30/10W-40 Motorcycle Engine Oil (API SG Grade And Above) | Packaging Type: | Coloured Bags Coloured Boxes/white Bags |
| Customised Service: | Colour Boxes/colour Bags (leave Your Contact Information For More Details) | ||
| Highlight |
high strength motorbike body parts,Motorcycle Body accessories high performance |
||
Product Description
CG125 motorcycle oil pump, 1:1 reproduction of the original CG125 specifications, with mounting holes, gear module, and oil outlet interface 100% matching the original vehicle, allowing direct replacement of old parts without modification; the pump body is made of high-quality ADC12 aluminium alloy die-cast, and the gears are made of 45# carbon steel with quenching treatment (hardness HRC40-45), wear-resistant and impact-resistant, not easily deformed; internal meshing gear structure with precise tooth clearance control (≤0.03mm), stable oil supply pressure (0.15-0.3MPa), uniform oil flow, ensuring full lubrication of all engine components; built-in nitrile rubber sealing gasket and skeleton oil seal, oil and temperature resistant (-30℃ to 120℃), preventing oil leakage, suitable for high-temperature engine operation; comes with matching fixing bolts and gaskets, ready to fix directly at the engine oil pump installation position, allowing even beginners to complete the replacement quickly
Product Highlights
CG125 motorcycle oil pump, 1:1 reproduction of the original CG125 specifications, with mounting holes, gear module, and oil outlet interface 100% matching the original vehicle, allowing direct replacement of old parts without modification; the pump body is made of high-quality ADC12 aluminium alloy ...
